Bourdon tube pressure gauge,edgewise panel (Price & availability on application)

Taxes included. Shipping calculated at checkout.

SKU :

press-product20

Calibration needed?
Design DIN 437002 Nominal sizes in mm 144 x 72, 144 x 144, 96 x 96, 72 x 72 Accurancy class Class 1.0: NS 144 x 72, 144 x 144, 96 x 96 Class 1.6: NS 72 x 72, 96 x 96 Scale ranges NS 144 x 72, 144 x 144, 96 x 96: 0 ... 0.6 to 0 ... 1,000 bar NS 72 x 72: 0 ... 0.6 to 0 ... 400 bar or all other equivalent vacuum or combined pressure and vacuum ranges Permissible temperature Ambient: -20 ... +60 °C Medium: +60 °C maximum (soft soldered); +100 °C maximum (brazed) Pressure limitation NS 144 x 72, 144 x 144, 96 x 96 Steady: Full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value NS 72 x 72 Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: Full scale value Temperature effect When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale value Ingress protection IP 42 per EN 60529 / lEC 529
View full details
  • Description
  • Download Brochures

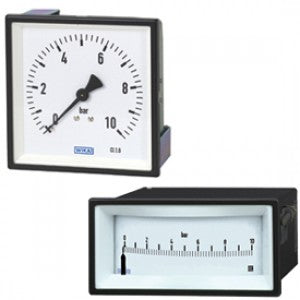

This edgewise-panel mounted Bourdon-tube pressure gauge offers classic mechanical pressure measurement in a rugged instrumentation package. Designed for panel-front installation, the gauge provides reliable analog pressure indication with proven Bourdon-tube technology. Suitable for use in industrial control panels, HVAC systems, processes, and equipment where visual pressure indication is required, the gauge combines durability, simplicity, and ease of reading. The “price & availability on application” status reflects custom specification options such as wetted parts, scale ranges, or special calibrations.

Key Features:

Proven Bourdon-tube mechanism for reliable mechanical pressure measurement.

Edgewise panel mount format for flush panel installation.

Customisable options (scale, materials, mounting) available to suit special applications.

Analog pointer display for clear and intuitive reading at a glance.

Rugged design suitable for industrial environments and control panel mounting.

Ideal when digital instrumentation is not required or when a simple, reliable indicator is preferred
