Bolt-On RTD Sensors with Threaded SS Housing

$279.75
Excl GST: $254.32
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

RTD-850-Series

Calibration needed?

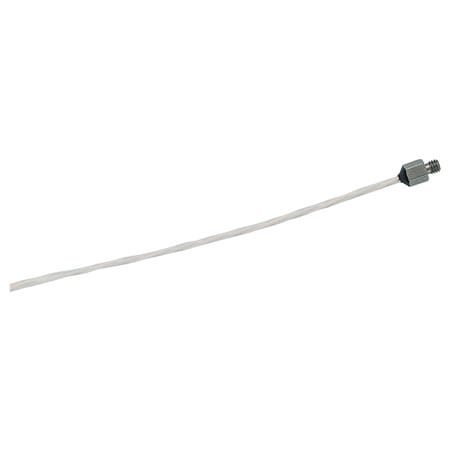

Bolt-on or bolt-mount RTD sensors encapsulated in a small stainless steel #8-32 or M4 threaded housing. Ideal for bolting to objects to measure temperatures up to 230°C.
View full details
  • Description
  • Download Brochures

The Bolt-On RTD Sensor in threaded stainless steel housing offers a compact, rugged solution for temperature monitoring on metal surfaces or pipes. Featuring a 100-Ω Class A platinum RTD element, three-wire connection, and PFA-insulated leads, it is designed for stable and accurate readings up to ~230 °C. With options for #8-32 or M4 threaded mounting, it’s ideal where space is tight and where a secure mechanical connection to the measured object is needed. Common in industrial machinery, motor casings, structural components, or electronics enclosures.

Key Features:

Platinum RTD element (100 Ω, Class A) for high accuracy

Stainless steel housing with #8-32 or M4 threads for bolt-on mounting

3-wire configuration to reduce error from lead resistance

PFA-insulated jacketed cable leads, with miniature connector option

Operating temperature up to ~230 °C

Fits into tight spaces; suitable for machines, panels, motors etc.
