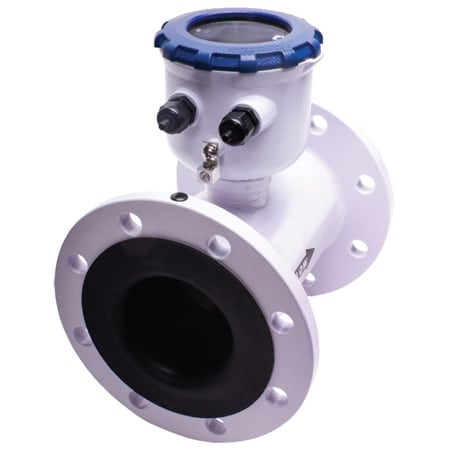

Battery or DC Powered Magmeter with Pulse & Optional 4-20mA Output

$5,060.83
Excl GST: $4,600.75
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

FMG470-Series

Calibration needed?
The FMG470 Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 2" to 12" flange sizes.
View full details
  • Description
The FMG470 Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 3” to 12” pipe in municipal or industrial water, waste and reclaimed water, pump stations, and packaged plant applications. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.
FMG470 Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously.

The display is meter mounted, and both rate and total indication are standard. Rate and total units and pulse scaling can be set via the front panel touch key pad by the user. Bidirectional flow reading is standard with totals available in forward, reverse, net flow, batch forward flow, and batch reverse flow. Batch totals can be reset.

Flow Rate(3"-12")

Pipe Size
(inches in diameter) 		3" 4" 6" 8" 10" 12"
Max Flow Rate
(Gallons/Minute) 		723 1285 2891 5140 8031 11565
Cut-off (min) Flow Rate
(Gallons/Minute) 		3.62 6.43 14.46 25.70 40.15 57.82
Max Flow Rate
(Litres/Second) 		46 81 182 324 507 730
Cut-off (min) Flow Rate
(Litres/Second) 		0.23 0.41 0.91 1.62 2.54 3.65
Max Flow Velocity
(Meters/Second) 		10 10 10 10 10 10
