All-Welded Pressure Gauges with Integral Diaphragm Seal
Regular price
$984.37
Excl GST: $894.88
Excl GST: $894.88
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:PGR

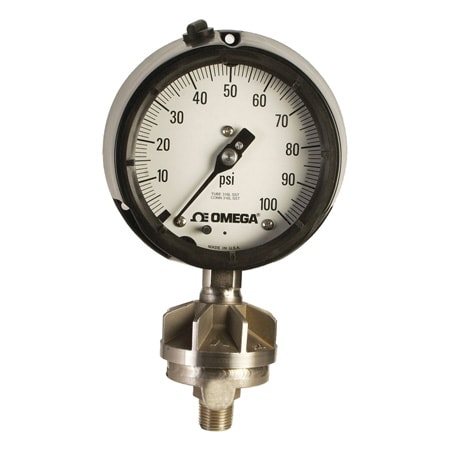

The PGR series are 4.5" dial gauges with a ±0.5% accuracy, and a stainless steel, liquid fillable and sealed design with fewer leak paths than competitive models.
Couldn't load pickup availability
- Description
- Download Brochures
OMEGA’s PGR Series All-welded gauge and seal offers customers a lower cost alternative to an individual gauge and diaphragm seal with the added advantage of a reduction in potential leaks. The wetted parts are 316L stainless steel. The process connection is a ½ NPT male bottom mount.
Specificat ions
Accuracy: ± 0.5% of span (grade 2A)
Case Size: 114 mm (4.5') diameter
Process Connection: ½ MNPT bottom connection
Seal Upper Material: 316L stainless steel
Diaphragm Material: 316L stainless steel
System Fill Type: DC200
Operating Temperature: 143°C (225°F)
Higher with cooling element PG-CT2
Specificat ions
Accuracy: ± 0.5% of span (grade 2A)
Case Size: 114 mm (4.5') diameter
Process Connection: ½ MNPT bottom connection
Seal Upper Material: 316L stainless steel
Diaphragm Material: 316L stainless steel
System Fill Type: DC200
Operating Temperature: 143°C (225°F)
Higher with cooling element PG-CT2
×
