Air Pressure Regulator
Air Pressure Regulator
Regular price
$230.90
Excl GST: $209.91
Excl GST: $209.91
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:PRG98A

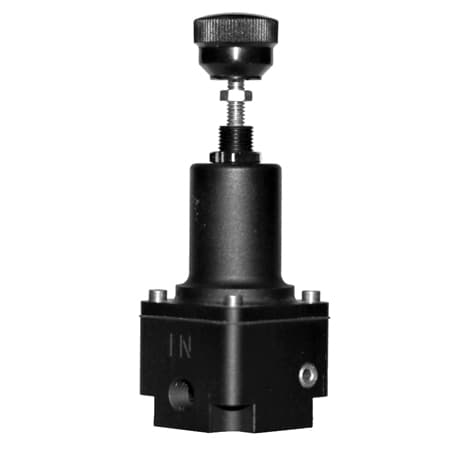

Air Pressure Regulator
Couldn't load pickup availability
- Description
- Download Brochures
Our old series PRG98 has been replaced by new upgraded PRG98A series (Please see all model section for available PRG98 series products)
OMEGA’s PRG98A miniature air pressure regulator provides the highest level of regulation accuracy and repeatability available in a compact lightweight housing. It is ideal for applications that require precise pressure control and substantial flow capacity under variable operating conditions and limited space.
SPECIFICATIONS
Maximum Supply Pressure: 10 bar (150 psi)
Supply Pressure Effect: 0.5 psi for 100 psi change
Flow Capacity: 10 SCFM @ 100 psi inlet
Exhaust Capacity: 7 SCFM
Sensitivity: 0.25 inH2O
Repeatability: 0.3% of span
Air Consumption: 6 SCFH maximum at 150 psi supply
Temperature Limits: -18 to 71°C (0 to 160°F)
Mounting: Pipe, panel, through body or optional bracket
Dimensions: 35.1 W x 35.1 D x 98.5 mm H (1.38 x 1.38 x 3.88')
Weight: 0.16 kg (0.35 lbs)
Port sizes(In/Out/Gauge): 1/16-27 NPT
Materials:
Body: Diecast aluminum alloy, chromate and epoxy paint
Elastomers: Nitrile
Trim: Zinc plated steel
Additional Materials: Brass, aluminum, stainless steel, zinc plated steel
OMEGA’s PRG98A miniature air pressure regulator provides the highest level of regulation accuracy and repeatability available in a compact lightweight housing. It is ideal for applications that require precise pressure control and substantial flow capacity under variable operating conditions and limited space.
SPECIFICATIONS
Maximum Supply Pressure: 10 bar (150 psi)
Supply Pressure Effect: 0.5 psi for 100 psi change
Flow Capacity: 10 SCFM @ 100 psi inlet
Exhaust Capacity: 7 SCFM
Sensitivity: 0.25 inH2O
Repeatability: 0.3% of span
Air Consumption: 6 SCFH maximum at 150 psi supply
Temperature Limits: -18 to 71°C (0 to 160°F)
Mounting: Pipe, panel, through body or optional bracket
Dimensions: 35.1 W x 35.1 D x 98.5 mm H (1.38 x 1.38 x 3.88')
Weight: 0.16 kg (0.35 lbs)
Port sizes(In/Out/Gauge): 1/16-27 NPT
Materials:
Body: Diecast aluminum alloy, chromate and epoxy paint
Elastomers: Nitrile
Trim: Zinc plated steel
Additional Materials: Brass, aluminum, stainless steel, zinc plated steel
×
