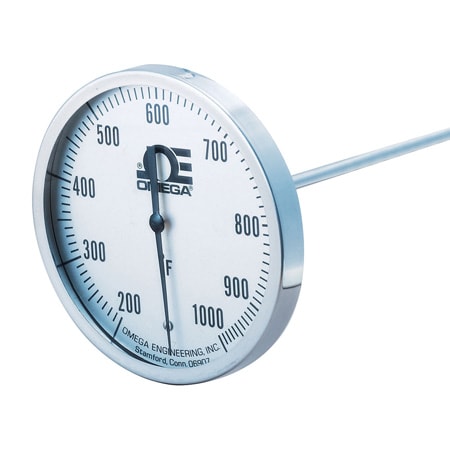

5" Dial Bimetal Hermetically Sealed Thermometer Various Mounts

$284.93
Excl GST: $259.03
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

B-S-DIALTEMP

Calibration needed?
Various mounts 5" diameter dial head thermometer with various temperature ranges and stem lengths. All stainless steel construction and hermetically sealed.
View full details
  • Description
  • Download Brochures
Ranges and °Divisions
Fahrenheit
Range Div. Range Div.
-100-100°F 2° -50-300°F 5°
-80-120°F 2° 50-300°F 5°
-40-160°F 2° 50-400°F 5°
*-20-120°F 2° 50-500°F 5°
*0-100°F 2° 50-550°F 5°
0-140°F 2° 50-750°F 5°
*25-125°F 5° 100-800°F 10°
0-150°F 2° 150-750°F 10°
0-200°F 2° 200-1000°F 10°
0-220°F 5° 100-200°F 10°
0-250°F 5° -70-150°F 10°
0-300°F 5° 200-300°F 10°
20-240°F 5° 300-400°F 10°
Celsius
Range Div. Range Div.
-50-200°C 1 0-200°C 2°
-50-100°C 1 0-300°C 5°
-50-50°C 1 0-400°C 5°
-40-70°C 1 100-500°C 5°
-40-160°C 1 -80-220°C 5°
*-30-30°C 1 -20-220°C 5°
-20-120°C 1 *0-30°C 5°
-10-110°C 1 *0-60°C 5°
*0-50°C 1 0-250°C 5°
0-100°C 1 50-450°C 5°
0-150°C 2 100-550°C 5°
*Minimum Stem Length 4'



To order a model B or S DialTemp utilize the 'To Order' box or the 'Partnumber Builder' below which reflects the most popular models. Many additional models are also available. Just review the pdf file in 'Related Links' below.You can then use 'Order By Partnumber' table to order a non-standard one. Even if the part number you select does not come up with a valid price it may be available!
