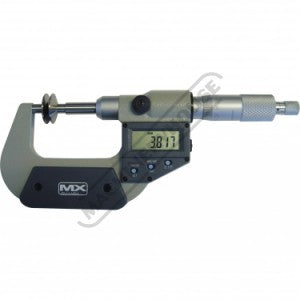

45-502 - Digital Disc Micrometer 0-25mm/0-1"Non rotating spindle

Regular price $317.12
Excl GST: $288.29
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SKU:met-1Q502

Calibration needed?
Designed for the measurement of gears and paper thickness. The spindle is non-rotating to eliminate torque on the work piece.
View full details

This precision micrometer features a 0–25 mm measuring range with a non-rotating spindle that eliminates torque on the workpiece—perfect for accurate measurements without surface distortion. With a resolution of 0.001 mm, flat-contact disc tip, and ratchet control for consistent measuring pressure, it’s ideal for gauging gear roots, thin edges, and delicate components. Its compact digital display and durable design deliver dependable readings in machining and quality workflows.

Key Features:

0–25 mm measurement range, 0.001 mm resolution

Non-rotating spindle to prevent part movement

Flat disc tip for precise surface contact

Ratchet stop ensures uniform measuring force

LCD readout with zero and inch/mm conversion features

Applications:

Perfect for gear inspection, aerospace parts checking, and fine mechanical calibration.

Secure Your Precision Tool
Contact us to order this digitized micrometer or request our calibration services for consistent accuracy.

Painted frame| Protection level IP54| Origin data set, Absolute and incremental readings| Metric/Inch conversion| RS232 data output. (Uses cable 40-400)| Large digital display| Metric/Imperial conversion| Ratchet thimble| Accuracy 0.004mm| Resolution 0.001mm / 0.0005"|
