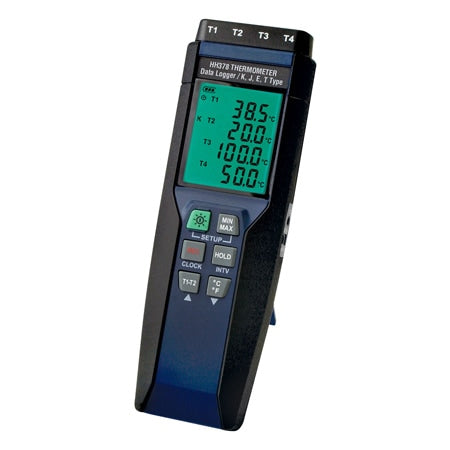

4-Channel Handheld Data Logger Thermometer-HH378-Series
Regular price
$1,041.35
Excl GST: $946.68
Excl GST: $946.68
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:HH378-Series
4-Channel Handheld Data Logger Thermometer
Couldn't load pickup availability
- Description
- Download Brochures
HH378 logger is in the end of its life cycle. As a possible substitute & upgrade, please check out Newest Released 8 Channel Thermocouple Data Logger OM-HL-EH-TC Series for more advanced features with better price.
The HH378 has a high resolution and fast analog-to-digital converter. Measurements settings and results are shown on the backlit LCD display. Data can be stored in the meter or directly saved on a computer through PC interface. Recorded data can be further processed on a computer. With the exclusive software, recording/recalling of data and programming of logging parameters can be done directly through a PC.
Specifications
Measurement Range:
K: -200 to 1372°C (-328 to 2501°F)
J: -150 to 1000°C (-238 to 1832°F)
E: -150 to 750°C (-238 to 1382°F)
T: -180 to 400°C (-292 to 752°F)
Input Protection: 250 Vac
Resolution: 0.1°C/°F <1000, 1°C/°F =1000
Accuracy: ±(0.1% of reading + 0.7°C) ±(0.1% of reading + 1.4°F)
Below -100°C (-148°F): ±(0.4% of reading +0.7°C) ±(0.4% of reading +1.4°F)
Temperature Coefficient: 0.01% of reading + 0.05°C per °C (<18°C or >28°C)
Sample Rate: 1 time per second
Battery Type: 9V battery (included)
Battery Lifetime: Approximately 30 hours (alkaline battery)
AC Adaptor: 9 Vdc (8 to 10 Vdc maximum)
Operating Temperature: -10 to 50°C (14 to 122°F)
Operating Humidity: 10 to 90% RH (no condensing)
Storage Temperature: -40 to 60°C (-40 to 140°F)
Storage Humidity: 10 to 75% RH
Dimensions: 196 H x 65 W x 36 mm D (7.72 x 2.56 x 1.42')
Approximate Weight: 310 g (10.93 oz)
System Required: Windows NT 4.0/ NT2000/XP/Vista/Windows 7
The HH378 has a high resolution and fast analog-to-digital converter. Measurements settings and results are shown on the backlit LCD display. Data can be stored in the meter or directly saved on a computer through PC interface. Recorded data can be further processed on a computer. With the exclusive software, recording/recalling of data and programming of logging parameters can be done directly through a PC.
Specifications
Measurement Range:
K: -200 to 1372°C (-328 to 2501°F)
J: -150 to 1000°C (-238 to 1832°F)
E: -150 to 750°C (-238 to 1382°F)
T: -180 to 400°C (-292 to 752°F)
Input Protection: 250 Vac
Resolution: 0.1°C/°F <1000, 1°C/°F =1000
Accuracy: ±(0.1% of reading + 0.7°C) ±(0.1% of reading + 1.4°F)
Below -100°C (-148°F): ±(0.4% of reading +0.7°C) ±(0.4% of reading +1.4°F)
Temperature Coefficient: 0.01% of reading + 0.05°C per °C (<18°C or >28°C)
Sample Rate: 1 time per second
Battery Type: 9V battery (included)
Battery Lifetime: Approximately 30 hours (alkaline battery)
AC Adaptor: 9 Vdc (8 to 10 Vdc maximum)
Operating Temperature: -10 to 50°C (14 to 122°F)
Operating Humidity: 10 to 90% RH (no condensing)
Storage Temperature: -40 to 60°C (-40 to 140°F)
Storage Humidity: 10 to 75% RH
Dimensions: 196 H x 65 W x 36 mm D (7.72 x 2.56 x 1.42')
Approximate Weight: 310 g (10.93 oz)
System Required: Windows NT 4.0/ NT2000/XP/Vista/Windows 7
×
