-35°C to 500°C Infrared Thermocouple Thermometer

$643.17
Excl GST: $584.70
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

OS1327D-Series

Calibration needed?
Handheld infrared and K type thermocouple thermometer has an USB interface, adjustable emissivity and laser sighting. 12:1 field of view.
View full details
  • Description
Applications
  • Electrical Troubleshooting
  • Automotive Repair and Maintenance
  • Air Conditioning
  • Semiconductor Manufacturing
  • HVAC Energy Audits
  • Factory Automation

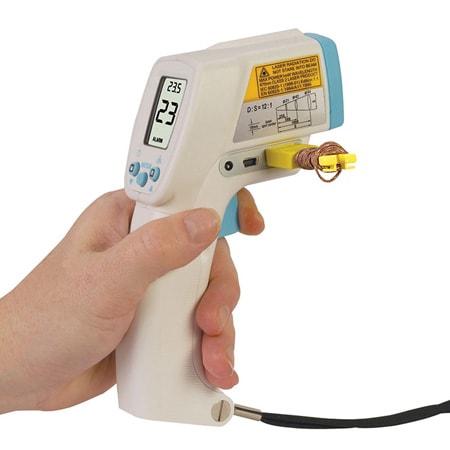

The high-performance, handheld OS1327D infrared thermometer is a non-contact temperature measurement instrument. The OS1327D features adjustable emissivity, laser sighting, backlit LCD, 12:1 field of view, max/min/avg/diff temperature monitoring, high/low audible alarms, temperature and data storage.

SPECIFICATIONS
Infrared Thermometer
Display: Backlight LCD
Measurement Range: -35 to 500°C (-31 to 932°F)
Resolution: 0.1°C/0.2°F
Accuracy: ±2% reading or ±2°C
Spectral Response: 6 to 14µm
Field of View: 12:1 optics ratio with a 1' min target
Emissivity: 0.17 to 1.00
Sighting: Laser marker < 1mw
K-Type Thermometer
Measurement Range: 150 to 1350°C (-238 to 1999°F)
Resolution: 0.1 and 1°
Accuracy: ±(0.2% reading +2°C or 4°F)
General
Data Memory Capacity:
Auto: 21,000 set
Manual: 99 set (direct reading from LCD display)
Auto Power Off: Approx 15 sec
Battery Life: Approx 100 hours (laser pointer and backlight are not in use) (Alkaline)
Power Source: One 9V cell (included) (ANSI/NEDA-1604A, IEC-6LR61)
Operating Temperature: 0 to 50ºC (32 to 122ºF) below 80% RH
Storage Temperature: -10 to 60ºC (14 to 140ºF) below 70% RH
Dimensions: 172 L x 118 W x 46 mm D (6.81 x 4.65 x 1.81')
Weight: 220 g (7.76 oz)
