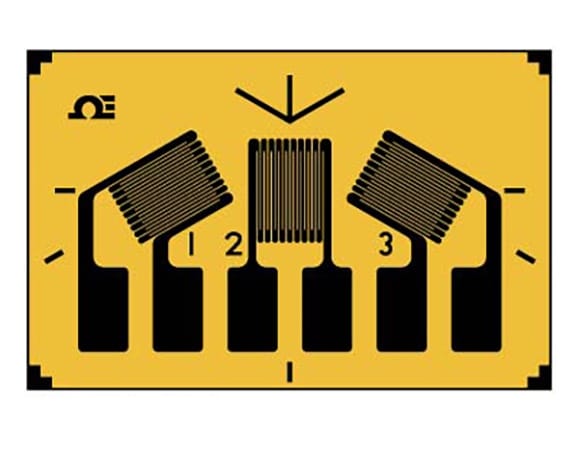

3 Element, 0°/60°/120° Planar, Compact Rosette Strain Gauges

With its three-grid layout at 0°, 60°, and 120°, this planar compact rosette enhances sensitivity to asymmetrical stress states. The design is especially effective for curved or circular components like pressure vessels or cylindrical assemblies. Its space-conscious structure and accurate response make it ideal for pressure analysis, structural integrity assessments, and composite materials testing, maintaining long-term calibration integrity.

Key Features:

0°–60°–120° configuration for multi-vector strain detection

Compact format fits curved or constrained surfaces

Highly precise strain resolution tailored for pressure and rotational load analysis

Robust for laboratory and industrial testing

Calibration-ready with local field and documentation support
