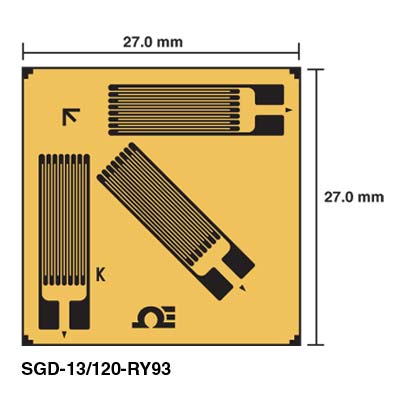

3 Element, 0°/45°/90° Corner Rosette Strain Gauges

The 3-element corner rosette strain gauge is a specialized instrument designed to measure multi-directional stresses in materials where the principal stress orientation is unknown. Arranged at 0°, 45°, and 90°, the rosette layout enables comprehensive stress analysis by capturing strain data across three different axes. Constructed with sealed constantan foil grids on a polyimide carrier, this gauge delivers consistent and stable performance in both static and dynamic load testing scenarios. These features make it indispensable for structural integrity analysis, fatigue studies, and advanced materials testing in industrial and research applications.

Key Features:

Three-grid design at 0°, 45°, and 90° for multi-axis stress detection

Constantan foil grids sealed for stability and accuracy

Polyimide carrier resistant to heat, chemicals, and mechanical stress

Effective for static and dynamic measurements

Well-suited for structural, materials, and industrial testing

Calibration-ready for precision results with local support available
