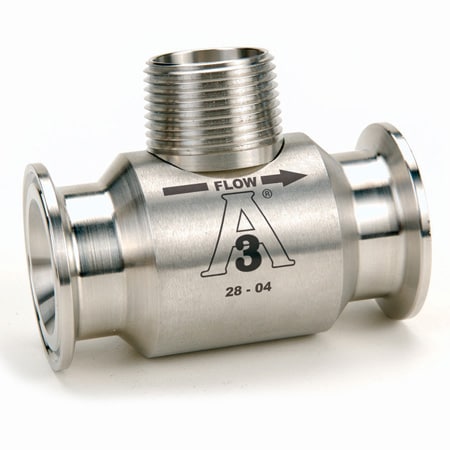

3-A Certified Sanitary Clamp High Temperature Turbine Meters

$4,066.94
Excl GST: $3,697.22
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

G-Series-3-A

Calibration needed?
G-Series Sanitary Turbine Flow Meters are volumetric flow measurement devices. The moving fluid is used to turn a rotor who's speed is proportional to the fluid velocity or flowrate.
View full details
  • Description
  • Download Brochures
The G-Series High Temperature Sanitary Turbine Flowmeters are volumetric flow measurement devices. The moving fluid is used to turn a rotor, which is suspended in the flow stream. The rotating speed of the rotor is proportional to the fluid velocity or flowrate. As the blades from a spinning rotor pass by a magnetic sensor, an AC voltage pulse is generated and transmitted to the readout instrument. Each pulse is equal to a given volume of liquid therefore “x” number of pulses are equal to a gallon, litre, pound, barrel, etc.

Select a Magnetic Pick-up from The Table

Selection Guide for 1 in. 1-1/2., 2 in. Turbine Meters
Magnetic Pickup type Part No. Application Cable Type

Wire Lead Standard

81003000

Meter mount electronics. Temperature range: -100°F to +250°F. Sine wave output.

None

Herm/High Temp.

81002000

Remote mount electronics. Temperature range: -450°F to +258°F. Sine wave output.

T

High Temp. Standard

81007000

Remote mount electronics. Temperature range: -450°F to +800°F. Sine wave output.

T

Active Digital

81004000

Remote mount electronics. Temperature range: -40°F to +248°F. Square wave, open collector output, 5-32 VDC required. Signal output: 0-10V, NPN

D
