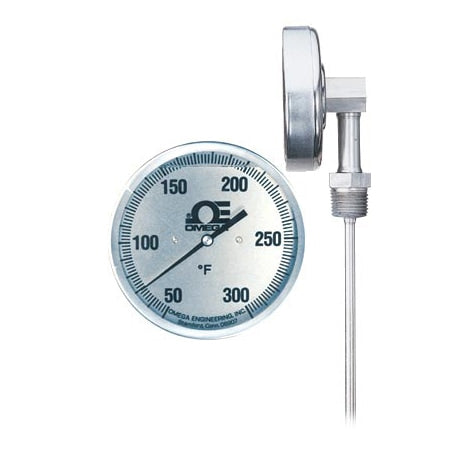

3" and 5" Dial Bimetal Thermometer with NPT options

$346.30
Excl GST: $314.82
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

X-XR-V-VR-DIALTEMP

Calibration needed?
Broad temperature range hermetically sealed dial thermometers with 3" and 5" dial sizes. Ideal for installation on top of tanks and boilers. Dual ranges available.
View full details
  • Description
  • Download Brochures
Thermometers of this design are well adapted to installation on top of tanks, boilers, in high locations or other areas where it would be difficult to read a standard angle-form instrument.

Stems are 1/4' in diameter. Stem lengths up to 36' can be supplied.

Normally supplied with the stem at the BOTTOM (6 o’clock) position, on special order, these thermometers can be set with the stem protruding at the LEFT (9 o’clock), TOP (12 o’clock) or RIGHT (3 o’clock) positions. If not specified, the standard BOTTOM (6 o’clock) position will be supplied.

X, XR, V and VR
Ranges and °Divisions
Fahrenheit
Range Div.
-100-100°F 2°
-80-120°F 2°
-40-160°F 2°
-20-120°F 2°
*0-100°F 1°
0-140°F 2°
*25-125°F 1°
0-150°F 1°
0-200°F 2°
0-220°F 2°
0-250°F 2°
0-300°F 2°
20-240°F 2°
-50-300°F 5°
50-300°F 2°
50-400°F 5°
50-500°F 5°
50-550°F 5°
50-750°F 10°
100-800°F 10°
150-750°F 10°
200-1000°F 10°
**250-600°F 10°
-100-200°F 10°
-70-150°F 10°
†200-300°F 10°
†300-400°F 10°
Celsius
Range Div.
-50-200°F 2°
-50-100°C 2°
-50-50°C 1°
-40-70°C 1°
-40-160°C 2°
*-30-30°C 1°
-20-120°C 2°
-10-110°C 1°
*0-50°C 1/2°
0-100°C 1°
0-150°C 1°
0-200°C 2°
0-300°C 2°
0-400°C 5°
100-500°C 5°
-80-220°C 5°
†-20-220°C 5°
†*0-30°C 5°
*0-60°C 5°
0-250°C 5°
†50-450°C 5°
100-550°C 5°
Dual Range °F / °C
Range Div. Range Div.
-50-210°F 5° -50-100°C 2°
-100-100°F 2° -70-40°C 1°
*25-125°F 1° -5-50°C 1°
-40-160°F 2° -40-70°C 1°
0-200°F 2° -10-90°C 1°
0-250°F 2° -20-120°C 2°
50-300°F 2° 10-150°C 2°
50-500°F 5° 10-260°C 5°
50-550°F 5° 10-290°C 5°
150-750°F 10° 70-400°C 5°
200-1000°F 10° 100-500°C 5°
0-150°F 10° –20-70°C 5°
20-240°F 10° -10-115°C 5°
50-400°F 10° 10-200°C 5°
**200-1000°F 10° 100-550°C 5°
* Minimum Stem Length - 4'
**Range available in X and XR Models only
†Range available in V and VR Models only
