100 S/s 16-Channel 16-Bit Analog Input Board for the ISA Bus
View full details
  • Description

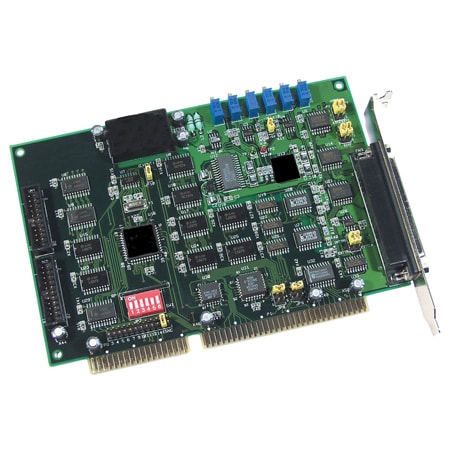

The OME-A-826PG is a 16-bit multifunction analog and digital I/O board for PC/AT compatible computers. The OME-A-826PG offers 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bits resolution. In addition, the OME-A-826PG has 16 digital inputs, 16 digital outputs and one counter/timer channel. The OME-A-826PG provides gains of 1, 2, 4 and 8. It has a maximum sampling rate of 100 KS/s. DMA operation is jumper selectable for levels 1 or 3. Interrupts are jumper selectable between 3 and 15.

Software Development Kit:All data acquisition boards are supplied with a standard software development kit for Windows 98/NT/2000/XP. The software development kit includes DLL files for programming in C, C++ or other high level languages and OCX files for Visual Basic or Active X programming. LabView drivers are also included.

Specifications
ANALOG INPUT
Channels: 16-channel single-ended or 8-channel differential
Input Ranges: +10 V, +5 V, +2.5 V, +1.25 V
Resolution: 16-bits
Conversion Rate: 100 KS/s
Input Impedance: 10,000 Ω//6pf
Overvoltage Protection: +35 V
Linearity: +1-bit
Sample & Hold: on chip
Zero Drift: 19 ppm/°C of full scale

D/A OUTPUTS
Channels: 2 independent
Type: 12-bit double buffers
Linearity: 0.006% FS
Output Driving: 5 mA
Output Range: 0 to 5 V or 0 to 10 V
External Reference: Max +10 V
Output Current: +5 mA

DIGITAL I/O
Inputs: 16 (LSTTL)
Input Low: VIL = 0.8 V max IIL = -0.4 mA max
Input High: VIH = 2.0 V min IIH = 20 µA max
Outputs: 16 channel TTL levels
Outputs Low: VOL = 0.5 V max @ IOL = 8 mA max
Outputs High: VOH = 2.7 V min IOH = -400 µA max

COUNTER/TIMER
Programmable Internal Timer: (0.0045 Hz 0.5 MHz)
Type: 82C54
A/D Pacer: 16-bit counter
Interrupt Channel: 3-15 jumper selectable

General Environmental
Power Requirements: +5 V @650 mA (max)
Operating Temperature: 0 to 50°C (32 to 172°F)
Storage Temperature: -20 to 70°C (-4 to158°F)
Software: Windows 95/98/NT
Humidity: 0 to 90% RH non-condensing
Dimensions: 122 H x 170 mm W (4.8 x 6.7")
Connector: analog I/O, 37-pin D-Sub; digital I/O, two 20-pin headers
