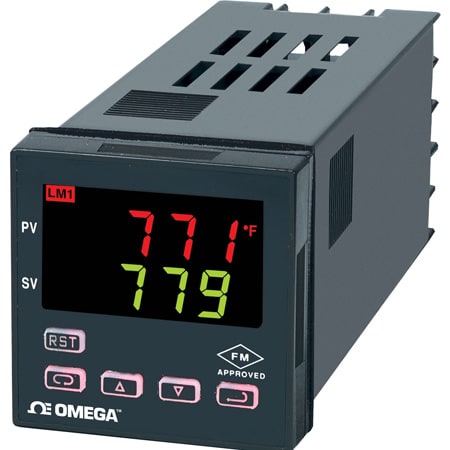

1/16 DIN Universal Process Limit Controller with Illuminated Keys
1/16 DIN Universal Process Limit Controller with Illuminated Keys
Regular price
$1,002.22
Excl GST: $911.11
Excl GST: $911.11
Shipping calculated at checkout.
SKU :
SKU:CN7400-Series
CN7400 Series 1/16 DIN Universal Input Process Limit Controller with Illuminated Keys, dual display and remote reset provides high or low process limit protection
Couldn't load pickup availability
- Description
- Download Brochures
The CN7400 Series temperature/process FM-approved limit controllers set a new standard in 1/16 DIN limit controls. They have universal inputs (10 thermocouple and 4 RTD types, voltage, and current). Standard features include remote reset capability. Outputs include normally open (form 'A') and normally closed (form 'B') relays. Form 'A' and form 'B' relays can be set up for each setpoint output and logically linked to emulate a form 'C' output.
SPECIFICATIONS
Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current Display: Two 4-digit, 7-segment, 7.62 mm (0.3') high LEDs
Accuracy: ±0.25% of span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20%
Power Consumption: 5 VA max
Operating Temperature: -10 to 55°C (14 to 131°F)
Memory Backup: Non-volatile memory
Relay Control Output Ratings:
Resistive: SPST, 3 A @ 240 Vac
Inductive: 1.5 A @ 240 Vac
Weight: 227 g (8 oz)
Panel Cut-Out: 45 +0.6 mm square (1.77 +0.02' square)
Maximum Panel Thickness: 6.35 mm (0.25')
Panel Depth: 133 mm (5.24')
| Input Types | Range |
|---|---|
| K Thermocouple | -200 to 2500°F (-129 to 1371°C) |
| J Thermocouple | -100 to 1600°F (-73 to 871°C) |
| T Thermocouple | -350 to 750°F (-212 to 398°C) |
| E Thermocouple | -100 to 1800°F (-73 to 982°C) |
| N Thermocouple | -100 to 2372°F (-73 to 1300°C) |
| R Thermocouple | 0 to 3200°F (-17 to 1760°C) |
| S Thermocouple | 0 to 3200°F (-17 to 1760°C) |
| B Thermocouple | 75 to 3308°F (24 to 1820°C) |
| L (J DIN) Thermocouple | -100 to 1600°F (-73 to 871°C) |
| C Thermocouple | 0 to 4208°F (-17 to 2320°C) |
| Pt100 RTD (0.00385) | -200 to 875°C (-328 to 1607°F) |
| Pt100 RTD (0.00392) | -200 to 875°C (-328 to 1607°F) |
| RTD, 120 Ω Nickel (0.00628) | -80 to 320°C (-112 to 608°F) |
| RTD, Pt1000 (0.00385) | -200 to 875°C (-328 to 1607°F) |
| 0 to 20 mA*, 4 to 20 mA* | -1999 to 9999 |
| 0 to 10Vdc*, -10 to 10 Vdc*, -10 to 10 mVdc* |
-1999 to 9999 |
Selectable Input: 10 thermocouple, 4 RTD, DC voltage or DC current Display: Two 4-digit, 7-segment, 7.62 mm (0.3') high LEDs
Accuracy: ±0.25% of span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20%
Power Consumption: 5 VA max
Operating Temperature: -10 to 55°C (14 to 131°F)
Memory Backup: Non-volatile memory
Relay Control Output Ratings:
Resistive: SPST, 3 A @ 240 Vac
Inductive: 1.5 A @ 240 Vac
Weight: 227 g (8 oz)
Panel Cut-Out: 45 +0.6 mm square (1.77 +0.02' square)
Maximum Panel Thickness: 6.35 mm (0.25')
Panel Depth: 133 mm (5.24')
×
