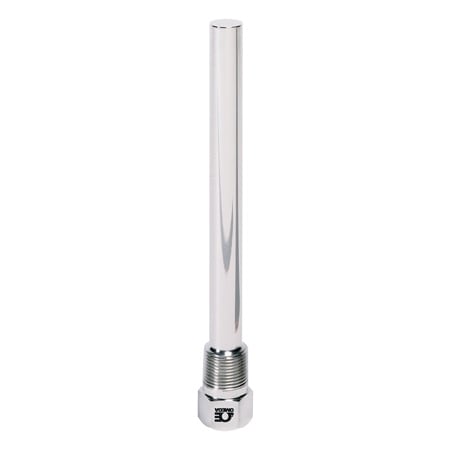

0.385" Bore Diameter Threaded Straight Thermowells

$119.91
Excl GST: $109.01
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

SERIES-385S

Calibration needed?
Threaded thermowells are available in straight shanks. Ideal for 3/8 inch diameter elements. Click here to shop more thermowells.
View full details
  • Description
  • Download Brochures
Application:
Standard length, 3/8' stem, bimetal thermometers. #14 gage thermocouple elements. Armored liquid-in-glass test thermometers. Other temperature-sensing elements having .377 in. maximum diameter.

Connection Size:
3/4' NPT and 1' NPT are standard. Other thread sizes are available upon request.

Protective Coatings for Thermowells:
• Resist Corrosion
• For Chemical Baths
• Color-Coded Sensors for Process Control
• Available in PFA, Epoxy and other materials. Consult Sales Department for complete information

Materials:
Brass (ASTM B-16), Carbon Steel (C-1018), Stainless Steel A.I.S.I. 304 & A.I.S.I. 316, Monel. Wells are also available in special materials; prices on request.


Series 385S—General Use
All dimensions in inches.

* NPSM internal pipe thread will accept both NPT and NPS male threads.


External Thread
P		 Model No. Elem. Lgth.
A		 Insert. Lgth.
U
3/4' NPT 3/4-385S-U 2 1/2
        -U 4 1/2
        -U 7 1/2
        -U10 1/2
        -U13 1/2
        -U16 1/2
        -U22 1/2		 4
6
9
12
15
18
24		 2 1/2
4 1/2
7 1/2
10 1/2
13 1/2
16 1/2
22 1/2
1' NPT 1-385S-U 2 1/2
        -U 4 1/2
        -U 7 1/2
        -U10 1/2
        -U13 1/2
        -U16 1/2
        -U22 1/2		 4
6
9
12
15
18
24		 2 1/2
4 1/2
7 1/2
10 1/2
13 1/2
16 1/2
22 1/2


Pressure-Temperature rating–lb per sq. inch
Material Temperature — °F
70° 200° 400° 600° 800° 1000° 1200°
Brass 5000 4200 1000 – – – –
Carbon Steel 5200 5000 4800 4600 3500 1500 –
A.I.S.I. 304 7000 6200 5600 5400 5200 4500 1650
A.I.S.I. 316 7000 7000 6400 6200 6100 5100 2500
Monel 6500 6000 5400 5300 5200 1500 –
See 385L Thermowell Page For Maximum Fluid Velocity
