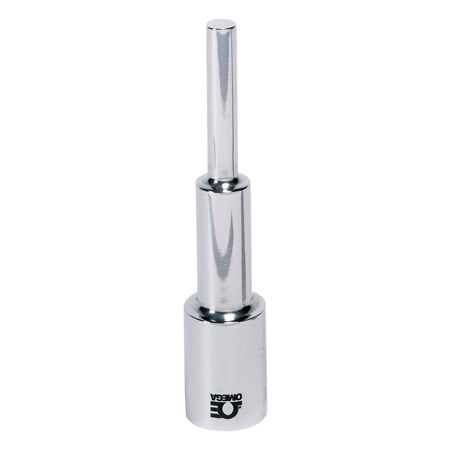

0.260" Bore Diameter Socket-Weld Design Thermowells
Regular price
$193.56
Excl GST: $175.96
Excl GST: $175.96
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:SERIES-260W
Socket-weld thermowells have a straight shank & are ideal for 1/4 inch diameter elements. Varity of materials available. Click here to see more.
Couldn't load pickup availability
- Description
- Download Brochures
Application:
260W series fits standard length 1/4' diameter elements. 385W series fits standard length 3/8' diameter elements.
Connection:
3/4' or 1' nominal pipe size welding shoulder fits ASA welding fittings, flanges, etc. Wells for larger pipe size fittings are available upon request.
Materials:
Carbon Steel (C-1018); A.I.S.I. 304 & A.I.S.I. 316 are standard. Other materials are available upon request.
Protective Coatings for Thermowells:
• Resist Corrosion
• For Chemical Baths
• Color-Coded Sensors for Process Control
• Available in PFA, Epoxy and other materials
Consult Sales Department for complete information
Lagging Extension:
When specifying lagging extension, choose a length which will permit the use of a standard element length. (See 260L and 385L lengths.)
Series 260W
All dimensions in inches.
![]()
* NPSM internal pipe thread will accept both NPT and NPS male threads.
Pressure-Temperature rating–lbs. per sq. inch
260W series fits standard length 1/4' diameter elements. 385W series fits standard length 3/8' diameter elements.
Connection:
3/4' or 1' nominal pipe size welding shoulder fits ASA welding fittings, flanges, etc. Wells for larger pipe size fittings are available upon request.
Materials:
Carbon Steel (C-1018); A.I.S.I. 304 & A.I.S.I. 316 are standard. Other materials are available upon request.
Protective Coatings for Thermowells:
• Resist Corrosion
• For Chemical Baths
• Color-Coded Sensors for Process Control
• Available in PFA, Epoxy and other materials
Consult Sales Department for complete information
Lagging Extension:
When specifying lagging extension, choose a length which will permit the use of a standard element length. (See 260L and 385L lengths.)
Series 260W
All dimensions in inches.
* NPSM internal pipe thread will accept both NPT and NPS male threads.
| Pipe Size P |
Model No. | Shank Dia. Q |
P | Stem Lgth. A |
Insert. Lgth. U |
| 3/4' Nominal (1.050' Dia.) |
3/4-260W-U 2 1/2 -U 4 1/2 -U 7 1/2 -U10 1/2 -U13 1/2 -U16 1/2 -U22 1/2 |
3/4 3/4 3/4 3/4 3/4 3/4 3/4 |
1.050 1.050 1.050 1.050 1.050 1.050 1.050 |
4 6 9 12 15 18 24 |
2 1/2 4 1/2 7 1/2 10 1/2 13 1/2 16 1/2 22 1/2 |
| 1' Nominal (1.315' Dia.) |
1-260W-U 2 1/2 -U 4 1/2 -U 7 1/2 -U10 1/2 -U13 1/2 -U16 1/2 -U22 1/2 |
7/8 7/8 7/8 7/8 7/8 7/8 7/8 |
1.315 1.315 1.315 1.315 1.315 1.315 1.315 |
4 6 9 12 15 18 24 |
2 1/2 4 1/2 7 1/2 10 1/2 13 1/2 16 1/2 22 1/2 |
Pressure-Temperature rating–lbs. per sq. inch
| Material | Temperature — °F | ||||||
| 70° | 200° | 400° | 600° | 800° | 1000° | 1200° | |
| Brass | 5000 | 4200 | 1000 | – | – | – | – |
| Carbon Steel | 5200 | 5000 | 4800 | 4600 | 3500 | 1500 | – |
| A.I.S.I. 304 | 7000 | 6200 | 5600 | 5400 | 5200 | 4500 | 1650 |
| A.I.S.I. 316 | 7000 | 7000 | 6400 | 6200 | 6100 | 5100 | 2500 |
| Monel | 6500 | 6000 | 5400 | 5300 | 5200 | 1500 | – |
×
