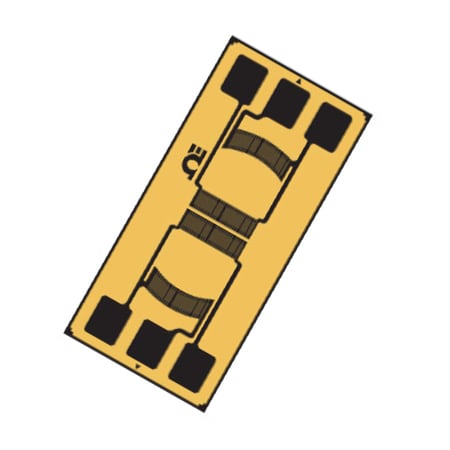

Diaphragm Strain Gauges

Diaphragm strain gauges are precision instruments used to measure mechanical strain and stress across various applications. They are essential for determining pressure, force, displacement, and strain in a wide range of materials, including metals, plastics, and composites, making them highly versatile for engineering and testing environments.

In this collection, you will find high-quality Half or Full Bridge Strain Gauges designed for transducer applications. These gauges are manufactured by Omega Engineering and are specifically built to provide precise and reliable measurements with transducer-quality performance.

The full bridge strain gauges provided by Omega Engineering offer a complete circuit that simplifies the installation process. This configuration is particularly beneficial because it provides higher sensitivity and better temperature compensation compared to quarter or half-bridge designs, leading to more accurate data collection.

These strain gauges are designed with extremely tight tolerances, which allows for easy and accurate gauge alignment during the application process. Proper alignment is critical in stress analysis to ensure that the gauge is measuring the exact vector of force intended, thereby providing reliable and repeatable results.

Yes, the diaphragm strain gauges in this collection are suitable for use on a variety of substrates. Whether you are testing the structural integrity of metal components, evaluating the flexibility of plastics, or measuring stress in advanced composite materials, these gauges provide the necessary accuracy for diverse industrial needs.

As a leader in professional calibration and measurement services, HK Calibrations ensures that all instruments remain accurate and traceable to national standards. By maintaining industry-standard calibration for your strain gauges and transducers, we help your organization reduce risk and maintain high quality-control standards.
