Timer controller

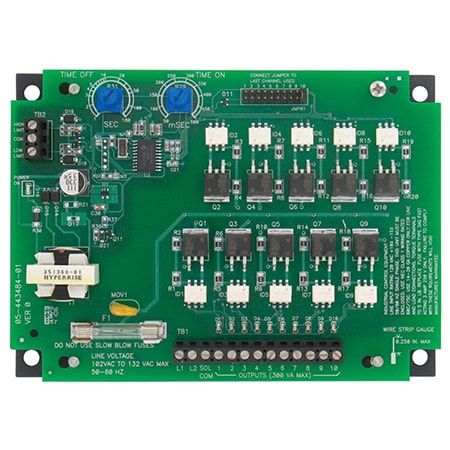

Panel mounted timer controller board with 4, 6 or 10 channels at 3A per channel. Designed for continuous or on-demand cleaning for receivers and pulse jet systems.

$183.70

Calibration Options

No Calibration

Required Calibration with Product + $85.00

Enquire

Data Sheet (PDF)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Dwyer Instruments is now a DwyerOmega product brand.

Ideal for pneumatic conveying systems, the Series DCT500 Low Cost Timer Controller is designed to provide continuous or on-demand cleaning for receivers and pulse jet systems. Available in either 4, 6 or 10 channels, each unit is the same size, minimizing enclosure space and reducing overall sytem installation cost.

The Series DCT500 is simple and easy to use. Time-On and Time-Off settings are selected using two potentiometers. High Limit and Low Limit control inputs are povided for use with on-demand systems.

For added safety, the control circuitry including the control inputs are isolated from the line voltage.

Applications:

Dust Collection
Pneumatic Conveying
Cement batch plants

Model Chart

Model	Number of Channels	Power Requirements
DCT504A	4	100 to 132 Vac 50/60 Hz
DCT506A	6	100 to 132 Vac 50/60 Hz
DCT510A	10	100 to 132 Vac 50/60 Hz
DCT504ADC	4	10 to 35 Vdc
DCT506ADC	6	10 to 35 Vdc
DCT510ADC	10	10 to 35 Vdc

Options Chart

add as a suffice to model number

-COC	Certificate of Conformance
-COO	Certificate of Origin - US
-H	Horizontal Mounting
-L	Mounting bracket for field retrofits
-R	Random Off Feature
-SC	Stop on Clean
-TO	10 Second Time On
-WP	Weatherproof housing
