Pulse Control Module convert 4-20mA to time proportional SSR Input

$936.79
Excl GST: $851.63
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

PCM4-Series

Calibration needed?

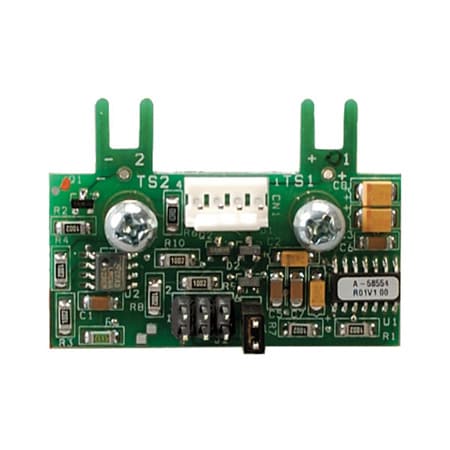

The OMEGA PCM series converter modules facilitate conversion of a 4 to 20 mA output to an on/off time proportioning output 3 to 32 Vdc Input to SSR.
View full details
  • Description
  • Download Brochures
The OMEGA™ PCM series converter modules facilitate conversion of a 4 to 20 mA output to an on/off time proportioning output. The modules mount directly to the input terminals of an SSR. Screw terminals are provided on the converter of the 4 to 20 mA control signal. The SSR’s power section connects in standard fashion to the line and load.

The PCM module with a solid state relay provides a rectangular shape, time proportional (zero-fired) control signal to the load. Thus, the average power to the load is proportional to the 4 to 20 mA input signal.

SPECIFICATIONS
Analog Input Signal: 4 to 20 mAdc
Note: Control signal cannot drop below 4 mAdc or improper operation may occur. Compliance Voltage Requirement:
 Time Base: 3 cycle resolution 6.4 Vdc (320 ? @ 20mA)
Ambient Temperature: 0 to 40°C (32 to 104°F)
Dimensions: 32 W x 45 L x 20 mmD (1.25 x 1.75 x 0.75")
