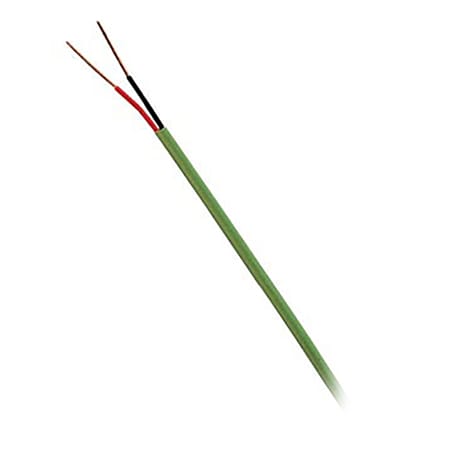

R and S Type Thermocouple Duplex Extension Wire

$404.61
Excl GST: $367.83
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

EXGG-RSX-WIRE

Calibration needed?
Duplex thermocouple extension wire for Type R/S (RX/SX) calibration. PFA, PVC, FEP, or fiberglass insulation
View full details
  • Description
  • Download Brochures

NSI Color Code :Positive Wire, Black Negative Wire, Red Overall, Green


Use the table below as a guide for types available. The "To Order" box contains some examples of popular models. Use the "Part Number Builder" (Below Table) to get pricing for all available models.
Insulation AWG


Insulation AWG
No.		 Model
Number		 Price
1000'		 Type
Wire		 Insulation Max. Temp* Nominal
Size		 Wt.†
lb/1000'
Conductor Overall °F °C
Glass 20 EXGG-RS-20 $480 Solid Glass Braid Glass Braid 392 200 .060 x .095 9
24 EXGG-RS-24 430 Solid Glass Braid Glass Braid 392 200 .050 x .080 5
Neoflon PFA 20 EXTT-RS-20 510 Solid PFA PFA 392 200 .068 x .116 11
24 EXTT-RS-24 480 Solid PFA PFA 392 200 .056 x .092 7
Polyvinyl 16 EXPP-RS-16 555 Solid Polyvinyl Polyvinyl 221 105 .118 x .195 26
Neoflon FEP 20 EXFF-RS-20 530 Solid FEP FEP 392 200 .068 x .116 11
24 EXFF-RS-24 430 Solid FEP FEP 392 200 .056 x .092 7
*Maximum temperature is for extension grade wire or insulation, whichever is lower.
†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).
