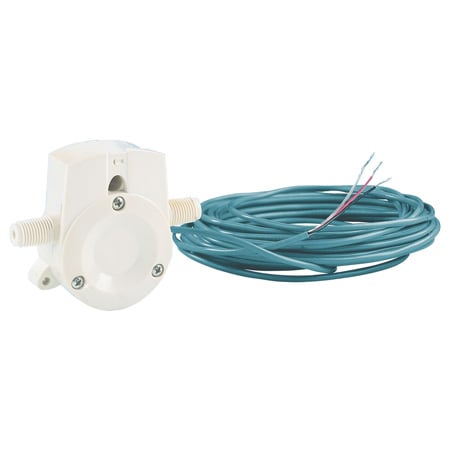

Micro-Flow Polypropylene Sensors For Low Flow Applications

The FP-5060 Series micro-flow sensors are constructed of polyphenylene sulfide and have high material strength. The series offers two flow ranges, starting at 0.03 GPM, for clean process liquids, regardless of fluid color. These sensors can be connected to flexible tubing or rigid pipe and use standard hardware for mounting. Having only one moving part reduces their operating cost and maintenance requirements.

SPECIFICATIONS
Output Signal: Open collector NPN transistor, 10 mA max sink
Cable Length: 7.5 m (25')
Mounting: Horizontal surface ±30°
Linearity: ±1% of full range
Repeatability: 0.5% of full range
Maximum Viscosity: 20 cP
Pressure/Temperature: 0 to 80°C (32 to 176°F) @ 80 psi max
Wetted Materials:

• Sensor base, cover and rotor shaft: glass-filled polyphenylene sulfide

• Rotor: PEEK^TM, natural, unfilled

• Rotor O-ring: FKM

• Cover O-ring: FKM


Maximum Pressure Drop: 25 psi @ max flow
Power Requirements: 5 to 24 Vdc @ 10 mA max
Dimensions: 100 L x 81 W x 36 mm H (3.96 x 3.2 x 1.42")
Weight: 250 g (9.6 oz)
