M12 Cable, 4 pin, for Transmitters, RTD, Thermistor
Regular price
$55.24
Excl GST: $50.22
Excl GST: $50.22
Taxes included.
Shipping calculated at checkout.
SKU :
SKU:M12C
M12 cable with 4 pin connectors, straight or angled. Field wireable connectors available. PVC or PUR insulation. Wash-down proof, for sanitary transmitters and RTDs
Couldn't load pickup availability
- Description
- Download Brochures
These extension cables can be used for connecting sensors such as our M12 Style Sanitary Sensors, PR-21 and PR-22 Industrial RTD Sensors or other sensors, to transmitters or instruments such as Omega's DTG-RTD Digital RTD Thermometer, TX94A-SS 4 to 20mA Transmitter, UWRTD-S-2 or UWRTD-2-NEMA Wireless Transmitters or other products which include an M12, 4-pin connector (see related product links below).
These M12 extension and patch cables are available in a variety of lengths. Special length patch cables with connectors both ends can be custom assemblied by cutting a single ended cable to your required length and then adding one of our field mountable connectors shown in the table below.
Specifications:
These cables are supplied in a variety of configurations including:

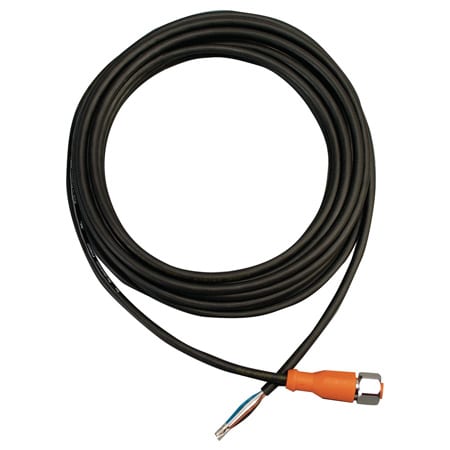

Straight socket style M12 connector one end with stripped leads the other end Right angled socket style M12 connector one end with stripped leads the other end Straight socket style M12 connector one end with a straight plug style M12 connector the other end Right angled socket style M12 connector one end with a straight plug style M12 connector the other end
The M12 cables include the following materials:
Please Note:
* = Ambient temperature shown is for the cable, molded connectors are rated to 90°C Max.
"PVC" and "PUR" molded connectors are Orange, "SIL" molded connectors are Gray.
These M12 extension and patch cables are available in a variety of lengths. Special length patch cables with connectors both ends can be custom assemblied by cutting a single ended cable to your required length and then adding one of our field mountable connectors shown in the table below.
Specifications:
These cables are supplied in a variety of configurations including:
The M12 cables include the following materials:
| Insulation Style | Order Code | Cable Color | Ambient Temp* | Nut Material | Contact Material | Cable Diameter |
|---|---|---|---|---|---|---|
| PVC | PVC | Orange | -25 to 100°C | 316 SST | Gold Plated Brass | 0.19 inches |
| Polyurethane | PUR | Black | -25 to 90°C | Nickel Plated Brass | Gold Plated Brass | 0.19 inches |
| Silicone | SIL | Gray | -50 to 180°C | Nickel Plated Brass | Gold Plated Brass | 0.17 inches |
Please Note:
* = Ambient temperature shown is for the cable, molded connectors are rated to 90°C Max.
"PVC" and "PUR" molded connectors are Orange, "SIL" molded connectors are Gray.
×
