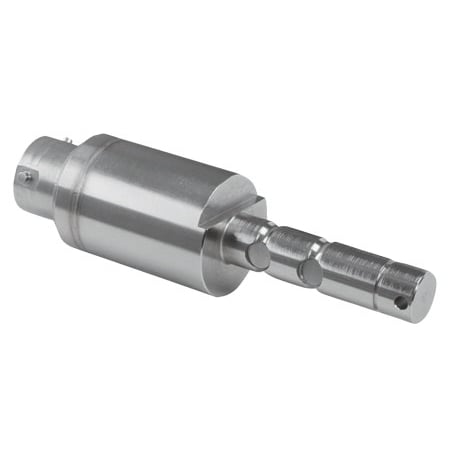

Load Pin Load Cell with Temperature Compensation

$2,917.89
Excl GST: $2,652.63
Sale Sold out
Taxes included. Shipping calculated at checkout.

SKU :

LCP-SERIES

Calibration needed?
The LCP series can be used on many types of pinned joints to control or monitor reaction load on the pins. They are available in capacities from 750 to 30,000 kgf.
View full details
  • Description
  • Download Brochures
LCP Load Pin Series are compact size load pins designed for tension and compression measurements. They can be applied on clevis pin shackles, loading cranes, lifting fittings, sprockets and pulley axles by replacing existing shear pins, clevis bolts, clevis pins, shear axles and many other types of pinned joints to control or monitor reaction load on the pins.

Load Pin Applications
Applications include measuring of cable tension, structural testing, aerospace and construction, force calibration, lifting systems, mooring systems, hydraulic presses and crane load systems. LCP Series are temperature compensated.


In this post how a load cell works is explained.
