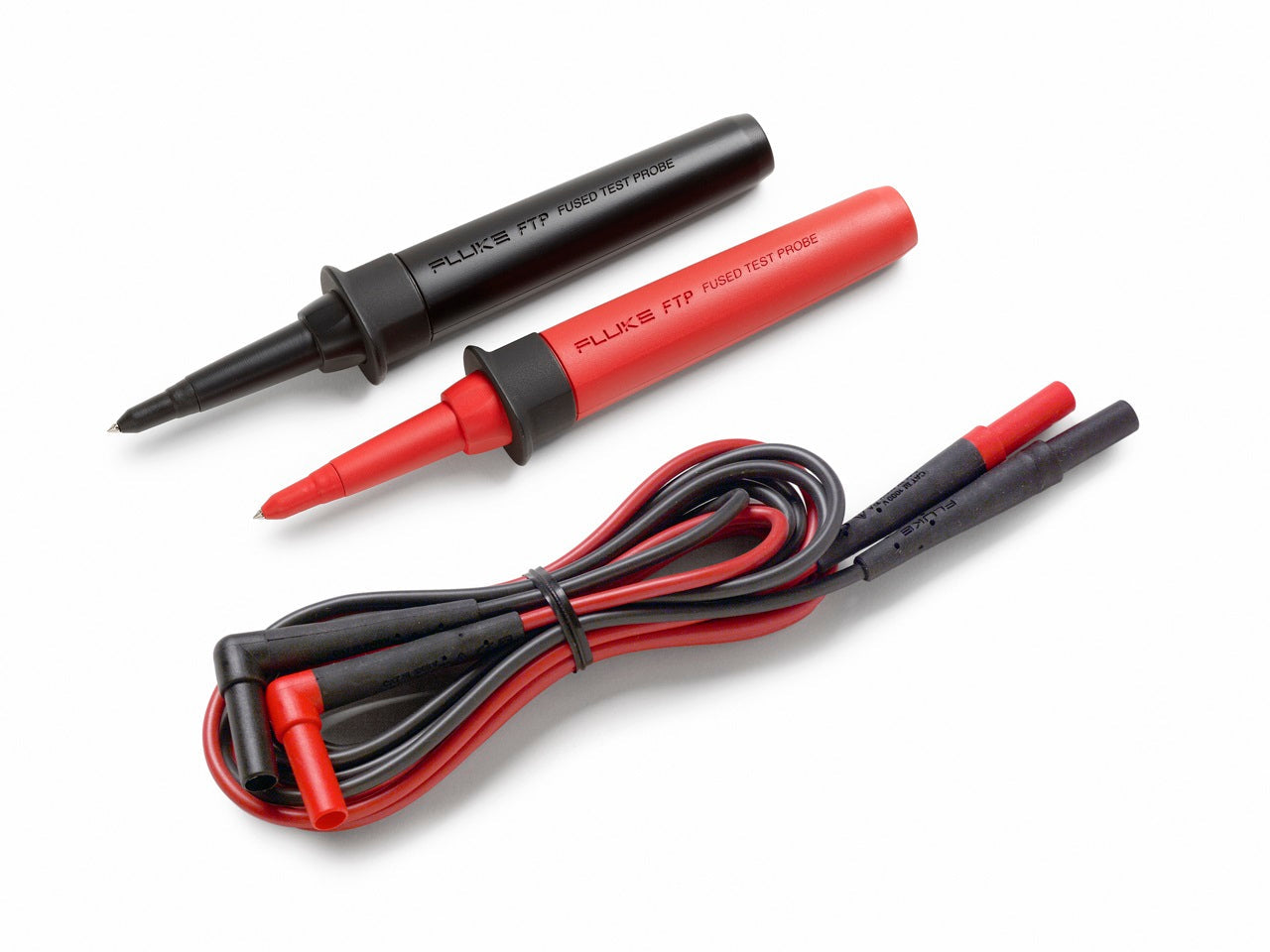

Fluke FTPL-1 fused test lead
Excl GST: $300.16
SKU :
SKU:FLUFTPL-1
Couldn't load pickup availability
- Description
- Features
The Fluke FTPL-1 set is a high-safety fused test probe and lead kit designed for tough electrical testing conditions. It includes fused probes that provide additional protection, ensuring that faults or wrong connections do not lead to damaging current surges. Even with a blown fuse, the probe still allows voltage indication, helping avoid misinterpretation of zero voltage. The set comes with flexible, reinforced leads and safety-rated connectors for high voltage and current tests. Ideal for electricians, field service, or industrial safety-critical testing.
Key Features at a Glance:
Enhanced Safety – Built-in, replaceable fuses (1000 V / 11 A, 20 kA interrupt rating).
Live-Voltage Indication – Voltage presence still shown even with a blown fuse.
Durable Test Leads – TL224 silicone-insulated, 1.5 m, straight and right-angle connectors.
Flexible Probe Options – 2 mm threaded tips, 4 mm spring contacts, and insulated caps.
High Safety Ratings – CAT III 1000 V, CAT IV 600 V, 10 A continuous rating.
Rugged & Reliable – SureGrip design with reinforced insulation and strain reliefs.
Wide Operating Range – Works reliably from -20 °C to 50 °C.
Serviceability – One-year warranty with replaceable fuse (Fluke part no. 803293).
- Built in fuses for additional measurement protection, 1000 V, 11 A with 20 kA interrupt rating
- Fluke fuse part number 803293
- Probes allow indication of live voltage even with blown fuse*
- 2 mm threaded probe tips include removable 4 mm spring contacts and removable insulated caps for probing closely spaced leads
- TL224 leads are right angle connector on one end and straight connector on the other with reinforced strain reliefs, 1.5 meter silicone – insulated wire resists heat and cold
- Operating temperature – 20 °C to 50 °C (-5 °F to 120 °F)
- CAT III 1000 V, CAT IV 600 V, 10 A rating
- One year warranty
