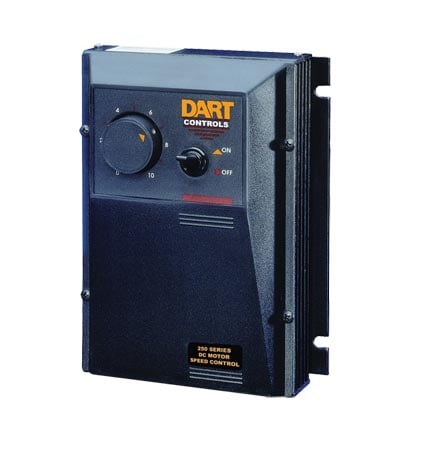

Dual Voltage SCR DC Motor Speed Control For Up To 2 H.P. Motors

Dual Voltage SCR DC Motor Speed Control For Up To 2 H.P. Motors

$1,307.31
Excl GST: $1,188.46
Sale Sold out
Shipping calculated at checkout.

SKU :

OMDC-250-Series

Calibration needed
The OMDC-250 Series is a variable speed DC motor controller with adjustable IR compensation, line compensation, 150% overload capacity and transient voltage protection.
View full details
  • Description
OMDC-253G-200E used for speed control in Omega's wire processing.

The OMDC-250 Series variable speed DC control offers superb flexibility, reliability, and value. A general purpose, economical control that is rated and tested to 2 horsepower, it provides the ultimate in standard features and versatility.

ADDITIONAL FEATURES
  • Adjustable IR compensation
  • Line voltage compensation
  • 5 kΩ speed potentiometer
  • 150% overload capacity
  • Transient voltage protection
  • Inhibit circuit permits start and stop without breaking AC lines
  • Shunt field supply provided SPECIFICATIONS
    Temperature:     -10 to 45°C (14 to 113°F)
    AC Input Voltage: ±10% rated line voltage
    Input Frequency: 50/60 Hz
    Dimensions: 97 W x 140 H x 89 mm D (3.8 x 5.5 x 3.5')
    Weight: 284 g (10 oz)

    NOTE:    When using the -29 option (FWD-OFF-REV switch), care must be taken to stop the motor completely before switching direction. Damage to the drive can result from switching direction at speed.
