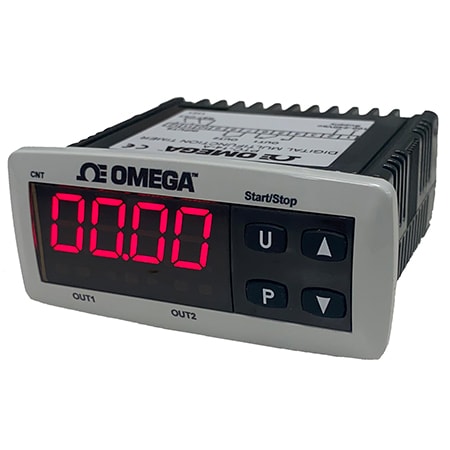

Compact Programmable Timer

The PTC-14-A Timer is a panel mounted multifunction timer with 5 programmable timing modes, multiple power options and 4 digit backlit LCD.
$178.79

The Omega PTC-14-A dual 4 digit digital timer is a multifunction, multi-time range digital timer suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications.

Five timing functions can be selected together with time ranges from 0.01 second to 9999 hours, to operate two independent relay output contacts which are isolated from the supply voltage.

The output contacts can be configured as two timed outputs, or one timed and one instantaneous output.

These timers are housed in a compact panel mounting enclosure and are powered from 24Vac/dc or 100-240Vac.

Specifications

Accuracy: ±0.1% of full scale
Power Supply Voltage:
PTC-14-LV-A: 24Vac/dc
PTC-14-A: 100 to 240Vac
Burden: <3VA
Frequency: 50/60Hz
Time Ranges:
0.01 to 99.99sec, 00:01 to 99:59min
00:01 to 99:59hrs, 1 to 9999hrs
Relay Output: Single pole changeover contact
and single pole N/O contact
Contact Rating:
OP1 16A at 250Vac/30Vdc (resistive)
OP2 5A at 250Vac/30Vdc (resistive)
Electrical Contact Life:
100,000 operations
Reset Time:
100ms approx.

Mechanical
Enclosure: Panel mounting to DIN
43700, Self extinguishing plastic case
Plug in connection terminals
Enclosure Code:
Case IP65
Weight: 170g

Environmental
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
General
Markings: CE marked
(meets 2014/35/EU low voltage and
2014/30/EU EMC directives)
