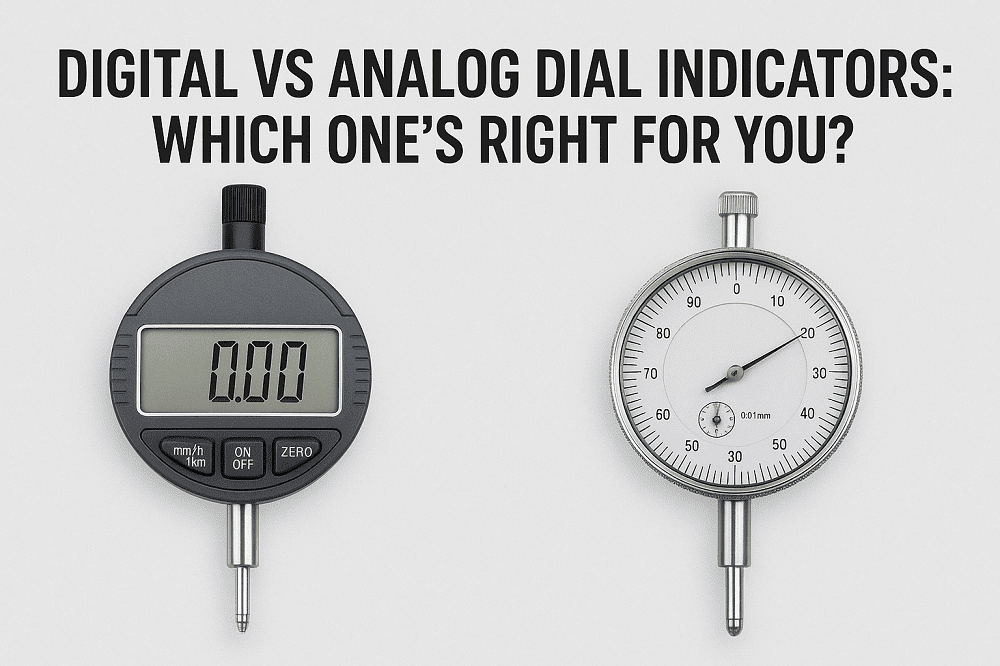

Digital vs Analog Dial Indicators: Which One’s Right for You?

Precision measurement is a cornerstone of any workshop, laboratory, or industrial setting. Whether you’re a machinist, quality control engineer, or hobbyist, selecting the right measuring tool can impact both accuracy and efficiency. Two of the most widely used tools for precise measurements are digital dial indicators and analog dial indicators. But which one is right for you? In this guide, we’ll explore the differences, advantages, and ideal applications for each, helping you make an informed choice.

In the world of precision measurement, choosing the right dial indicator is crucial for accurate results, efficiency, and workflow reliability. Dial indicators are indispensable tools for machinists, engineers, and technicians across laboratories, workshops, and industrial environments. The choice often boils down to digital vs analog dial indicators. Both have unique advantages, limitations, and ideal use cases. Understanding these differences will help you make an informed decision that meets your specific needs.

Understanding Dial Indicators

A dial indicator, also called a dial gauge, is a precision instrument used to measure small distances or deviations in a component's surface. It is widely used for tasks such as checking alignment, measuring flatness, assessing runout, or verifying tolerances in machining and manufacturing. Dial indicators can be broadly classified into two types:

Analog Dial Indicators: Traditional mechanical instruments with a dial face and needle that shows measurement values.

Digital Dial Indicators: Modern instruments with an electronic display, often offering higher precision, ease of reading, and additional functionalities.

The decision between digital and analog dial indicators depends on several factors, including accuracy requirements, work environment, user preference, and the type of measurements performed.

Key Differences Between Digital and Analog Dial Indicators

1. Readability and Display

Analog dial indicators display measurements via a rotating needle on a circular dial, typically marked in thousandths of an inch or hundredths of a millimeter. While highly reliable, analog dials require careful interpretation, especially for very small deviations. Reading errors can occur if the user misinterprets the needle position.

Digital dial indicators, on the other hand, provide a numerical readout on an electronic display, which is instantly readable and often more precise. Some digital models offer features like incremental or absolute measurement, zeroing at any position, and even unit conversion between inches and millimeters. This makes them highly user-friendly, particularly for beginners or technicians who value quick and precise readings.

2. Accuracy and Resolution

Analog indicators are known for their mechanical reliability and high resolution in skilled hands. They can deliver precise measurements consistently, particularly in controlled environments. However, human error in reading the needle can slightly affect accuracy.

Digital indicators excel in resolution and repeatability. Advanced digital models can measure up to 0.001 mm (0.00005 inches), and their electronic circuits minimize reading errors. The combination of digital dial gauge precision and user-friendly readout often makes digital indicators ideal for tasks requiring meticulous accuracy, such as laboratory measurements or quality control processes.

3. Durability and Environmental Resistance

Analog dial indicators are robust mechanical tools with no reliance on batteries or electronics, making them highly durable and reliable in harsh workshop environments. They can withstand dust, oil, vibration, and moderate impacts better than most electronic models.

Digital dial indicators are more sensitive to environmental factors like moisture, extreme temperatures, or rough handling. While modern digital indicators are designed to be durable and some are water-resistant or IP-rated, they may still require more careful handling than their mechanical counterparts.

4. Ease of Use and Workflow Efficiency

Digital indicators provide several advantages in terms of usability:

➜ Instant numerical readouts reduce the chance of human error.

➜ Some models include data output for recording measurements directly to a computer or data logger.

➜ Switching between measurement units is easy, allowing for faster workflow.

Analog indicators require more skill and attention, as users must interpret the dial correctly and manually record measurements. While they may be slower in high-volume operations, analog indicators are appreciated for their simplicity and reliability without relying on batteries.

5. Calibration and Maintenance

Both digital and analog indicators require periodic calibration to ensure accuracy.

Analog dial indicators involve mechanical parts that may require occasional lubrication or adjustment to maintain precision. They are simple to calibrate with standard gauge blocks or calibration tools.

Digital dial indicators often require electronic calibration checks and battery replacement. However, they usually include built-in features to facilitate calibration and alert the user when recalibration is needed.

6. Cost Considerations

Analog dial indicators are generally more affordable than digital alternatives. Their simple mechanical design allows for lower initial investment, making them suitable for small workshops or applications where extreme precision is not always required.

Digital dial indicators tend to be more expensive due to their electronic components, advanced features, and convenience. However, the cost can be justified in environments that demand high accuracy, fast measurements, or digital data collection.

7. Applications: When to Choose Digital vs Analog

Analog Dial Indicators

➜ Ideal for workshops with rugged environments.

➜ Perfect for technicians who prefer mechanical simplicity and reliability.

➜ Suitable for general alignment, runout checking, and less critical measurements where reading speed is not a priority.

Digital Dial Indicators

➜ Best for precision laboratory or quality control tasks.

➜ Ideal for users who need high-resolution measurements and quick readouts.

➜ Perfect for applications requiring frequent unit conversions, digital data logging, or incremental measurement tracking.

In many modern workshops, a combination of both types is common: analog indicators for durability and rough measurements, and digital indicators for tasks requiring precision and workflow efficiency.

8. User Preference and Training

Some professionals prefer analog dial indicators for the tactile feedback, simplicity, and lack of reliance on electronics. Learning to read an analog dial accurately is a valuable skill, especially in traditional machining environments.

Other users gravitate toward digital indicators for convenience, readability, and reduced risk of errors. For new technicians or high-volume production environments, digital indicators often improve productivity and reduce training time.

9. Future Trends in Dial Indicators

With the rise of smart manufacturing and Industry 4.0, digital dial indicators are increasingly integrated with digital systems. Features like Bluetooth connectivity, data logging, and automated calibration checks are making digital instruments an essential part of modern precision measurement workflows. Meanwhile, analog indicators continue to thrive due to their simplicity, mechanical durability, and affordability.

Choosing the Right Dial Indicator for You

When deciding between digital vs analog dial indicators, consider:

➜ Accuracy requirements: High-precision work favors digital indicators.
➜ Work environment: Harsh or industrial conditions may favor analog for durability.
➜ Workflow speed: Digital readouts speed up measurement and reduce errors.
➜ Budget constraints: Analog is cost-effective; digital may require higher investment.
➜ Data needs: Digital models often integrate with software for measurement tracking.

By analyzing your workflow, environmental factors, and precision needs, you can select the right dial indicator to ensure reliable, accurate, and efficient measurements.

Conclusion

Both digital and analog dial indicators have unique advantages. Analog dial indicators offer mechanical reliability, simplicity, and durability, making them ideal for challenging workshop environments and general precision work. Digital dial indicators, however, provide superior readability, higher resolution, and workflow efficiency, making them the choice for high-precision tasks and modern industrial applications.

Choosing the right dial indicator comes down to understanding your specific needs, measurement environment, and budget. For best results, many technicians keep both types in their toolkit, using each where it excels. Whether you prioritize durability, speed, accuracy, or ease of use, the right choice will help you achieve precise, repeatable measurements every time.
